Factory Price Knickable Excavator With Bucket /1 Ton Mini Crawler Excavator (mini Excavator )
Product Description
Products Description
The product has beautiful appearance, high configuration, superior performance, low fuel consumption and wide operating range. Quick-change joints can be used to reduce maintenance and operation costs, liberate labor, increase mechanization, low investment and high return.
Model | CNE-10 |
Manufacturer | CHINA MACHINERY ENGNEERING MACHINERY CO.,LTD |
Brand | RHINOCEROS |
Opereting Weight | 1000kg |
Digging Bucket Capacity | 0.03cbm/100kg |
Bucket width | 340mm |
Engine | KOOP/ CHANGCHAI |
Rated power | 8.6kw/1800r/min |
Displacement | 0.499L |
Bore stroke | 70x55 |
Main pump | CBK-F6.8 |
Displacement | 6.8ml/r |
Swing motor | SJ-TECH (MP-1-160) |
Traveling motor | KERSEN 310 |
Travel speed | 2.2km/h |
MAIN DEMENSIONS | |
Overall dimension LxWxH | 2430x880x1990 mm |
Wheelbase | 770 mm |
Total length of track | 960mm |
Piltform ground cearane | 376 mm |
Platform back tuning radius | 664 mm |
Chassis width | 896 mm |
Track width | 180 mm |
Chassisground ciarance | 132 mm |
Track height | 320 mm |
OPERATING RANGE | |
Max.digging depth | 1410mm |
Max. Vertical diging depth | 1376 mm |
Max.digging height | 2365 mm |
Max. Dumping height | 1655 mm |
Max. Digging redius on ground | 2560 mm |
Min. Rotation radius | 1100 mm |
Max. Upgrade height of bulldozer blade | 120 mm |
Max. Digging depth of bulldozer blade | 200mm |
Details Images
An extending undercarriage and fold out dozer blade allow the machine to be configured for excellent working stability and optimum performance.
Easy retraction, controlled from the operator's seat, enables the machine to pass through narrow openings.

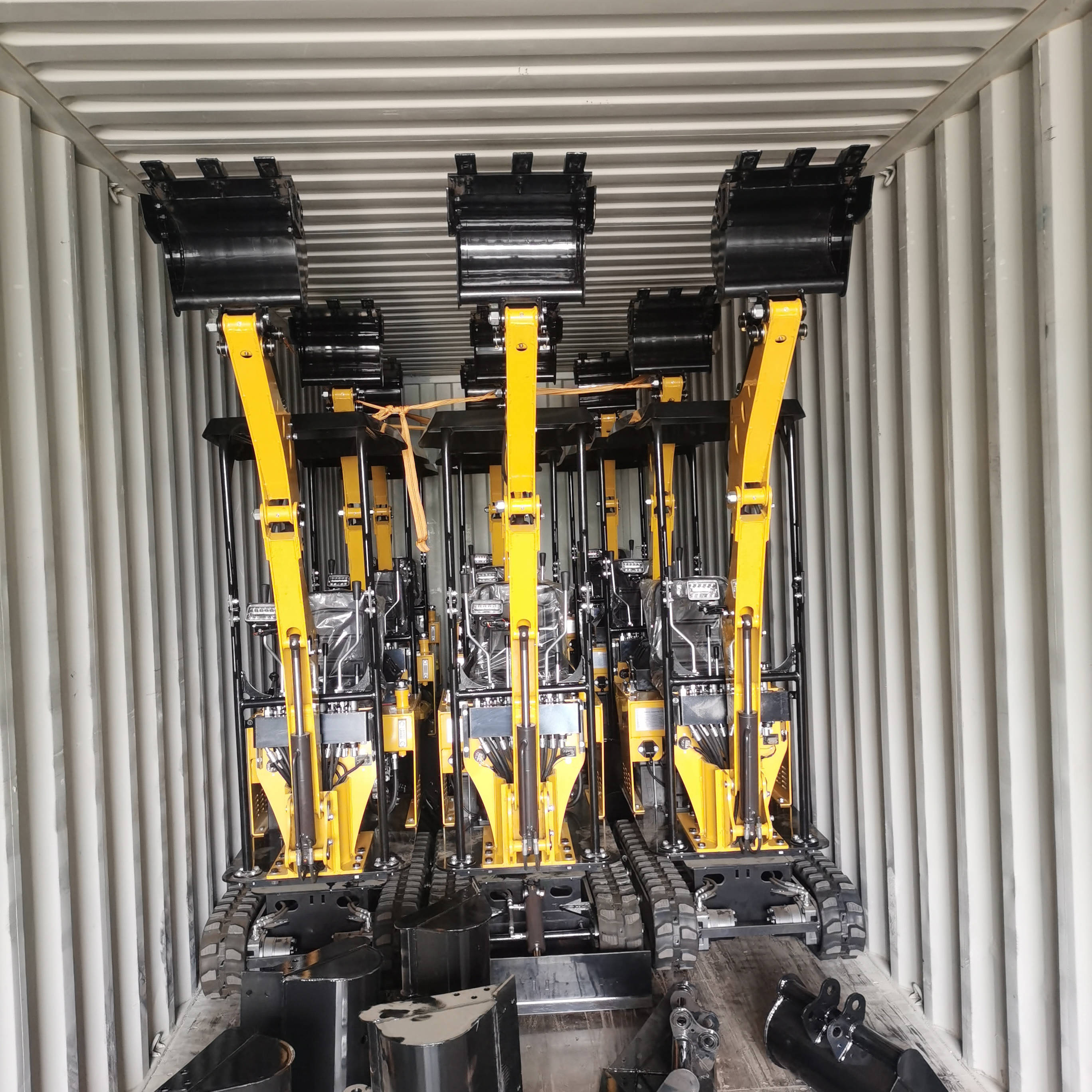

Packing and delivery
Our Advantanges
Trade strengths
China Machinery (Jining) Industrial Co., Ltd. is located in Asia's largest industrial base---Shandong Jining City. We are a professional manufacturer of construction machinery ,Spare Parts,and Other heavy machinery equipments and accessories .
CHNMC owns it,s speiclal design, development, manufacturing as a professional manufacturer.We focus on a series of machines and accessories, a wide range of diversity, reasonable price and on-time delivery.
