Diesel Jaw Crusher With Small Jaw Stone Crusher

  • Diesel Jaw Crusher With Small Jaw Stone Crusher
  • Diesel Jaw Crusher With Small Jaw Stone Crusher
  • Diesel Jaw Crusher With Small Jaw Stone Crusher
  • Diesel Jaw Crusher With Small Jaw Stone Crusher

Diesel Jaw Crusher With Small Jaw Stone Crusher

    Payment Type: L/C,T/T
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 15 Days
    Packaging: Bulk Shipment
    Brand: Mingyuan
    Transportation: Ocean,Land
    Place of Origin: Henan, China
    Supply Ability: 5 set per month
    Certificate: CE
    HS Code: 8474200000
    Port: Qingdao,Shanghai,Tianjin

Basic Info

Model No.: PE200X300

Product Description

For some small jaw crusher, it can be driven either by Diesel Engine or electric motor, which is normally called diesel jaw crusher, while for the big jaw crusher, it needs to use DIESEL GENERATOR SET, to make sure the whole crushing unit run smoothly. it is not necessary to use belt conveyor for diesel jaw crusher, as it can be moved to another place conveniently. so it is a kind of small mobile jaw crusher. As you may know that there are no electricity in many quarry mines, so the diesel jaw crusher is quite suitable for these quarry mines.

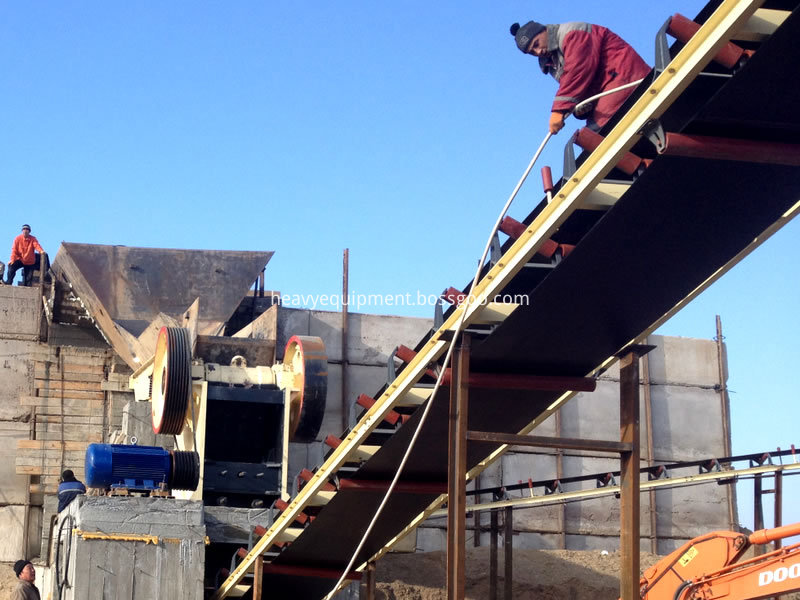

Diesel Jaw Crusher

Small Jaw crusher is a crushing equipment that reduce the materials from big size to small size, there are mainly two types: coarse and fine type, the coarse jaw crusher is usually served as the primary crusher and the fine jaw crusher is served as the secondary crusher. It's an ideal M sand machine, It can used for crushing various kinds of stone and Other materials, such as limestone, granite, pebbles, marble stone, Mica, bauxite, various kinds of ores, coal, construction waste material etc. The compressive strength of the material should be within 320MPa.It is widely used in mining, metallurgical industry, construction, road and railway building, chemistry, Working Principle of jaw crusher. and Mingyuan will provide good jaw crusher price for our clients.

There are one fixed jaw plate and movable jaw plate on the jaw crusher, the movable jaw plate moves up and down periodically, so the distance between the two plates becomes big and small, the materials is crushed when the distance becomes small, then discharged at the bottom when the distance becomes big.

Diesel Jaw Crusher

Features of Small jaw crusher /Diesel Jaw Crusher/Jaw Stone Crusher

1. V-shaped structure crushing cavity is able to meet a big feeding.
2. Movable jaw assembly adopts a high-quality steel casting and heavy eccentric shaft has also adopted forging billet for processing.
3. Use of finite element analysis technology helps to reach both light weight and high reliability.
4. Equipped with wedge adjustment devices, enable to realize automatic control and stepless adjustment.

5. Easy to move and not limited by location and electricity.


Small Jaw Crusher

Technical Parameters of Small jaw crusher/ Diesel Jaw Crusher / Jaw Stone Crusher


Model

Feed inlet size
(mm)

Max inlet size
(mm)

Capacity
(t/h)

Electric power
(kw)

Dimension
(mm)

Weight
(t)

PE150×250

150×250

125

1-5

5.5

875×758×850

0.81

PE250×400

250×400

210

5-20

15

1450×1315×1296

2.8

PE400×600

400×600

340

25-65

30

1565×1732×1586

6.5

PE500×750

500×750

425

45-80

55

1892×2054×1853

10.1

PE600×900

600×900

500

70-150

55-75

2520×1840×2303

15.5

PE750×1060

750×1060

630

130-260

110

2620×2302×3110

28

PE900×1200

900×1200

750

220-500

110-132

3789×2826×3025

50

PE1000×1200

1000×1200

850

250-700

132

3889×2826×3025

57

PE1200x1500

1200×1500

1020

400-1000

160-220

4200×3750×3820

100.9

Jaw Stone Crusher


Features of Jaw Stone Crusher /Diesel Jw crusher /Small Jaw Crusher

2. High crushing ratio, even output granularity;
3. High reliability, low investment;
4. Low noise, less dust.


Our Service for Jaw Stone Crusher /Diesel Jw crusher /Small Jaw Crusher

1: Providing a suitable solution based on client's requirement.

2: Provide the quality products according to the specification described in the contract.

3: After delivery, we'll dispatch our engineer to the client's mining site to guide the installation, commissioning and training, until the client`s workers can operate the project smoothly. until the client's workers can operate the project smoothly.


Jaw Stone Crusher

Jaw Stone Crusher

Jaw Stone Crusher


2. Performance and Features of Technical parameters of VSI Sand Making Machine/ M sand machine price /Jaw crusher for sale

1). This sand maker widely replaces roller mill, ball mill in the world;
2). Unique structure, smooth operation;
3). Less consumption, high output, big crushing proportion;
4). Small size, easy operation, convenient installation and maintenance;
5). The sand maker has the function of shape making, the product is cubic, and the bulk density is big;
6). In the production process, the stone materials can form a surface guard to avoid abrasion of machine, so the sand maker is durable;
7). A few of easily damaged parts are made of hard and durable materials, small, light, and easy to be replaced.

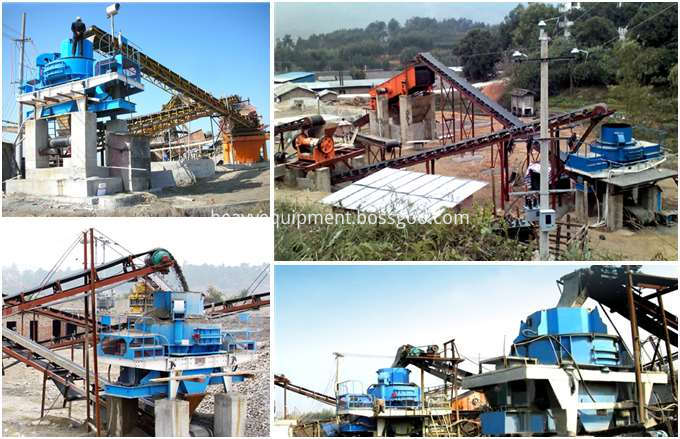

M Sand Machine Price

Technical parameters of M sand Machine (VSI) /M sand machine price /Jaw Stone Crusher /Diesel Jw crusher /Small Jaw Crusher


Model

VSI7611

VSI8518

VSI9526

VSI1140

Capacity(t/h)

Feed both at center
and at sides

120-180

200-260

300-380

450-520


Feed at center

60-90

100-130

150-190

225-260

Max feed size
(mm)

Sofe material

<35

<40

<45

<50


Hard material

<30

<35

<40

<45

Rotation speed
(r/min)

1700-1890

1520-1690

1360-1510

1180-1310

Power(KW)

110-150

180-220

264-320

400-440

Overall dimension
L*W*H (mm)

3700×2150×2100

4140×2280×2425

4560×2447×2778

5000×2700×3300

Weight(t)

7.8

10.3

16

25.6

Power supply

380V,50HZ

380V,50HZ

380V,50HZ

380V,50HZ

Vibrating sensor

detect range: 0.1-20mm/s continous and adjustable

Lubrication and
hydraulic station

Power(Kw)

2×0.31KW


Safety assuance.

Double

Jaw Stone CrusherJaw Stone Crusher For Sale
