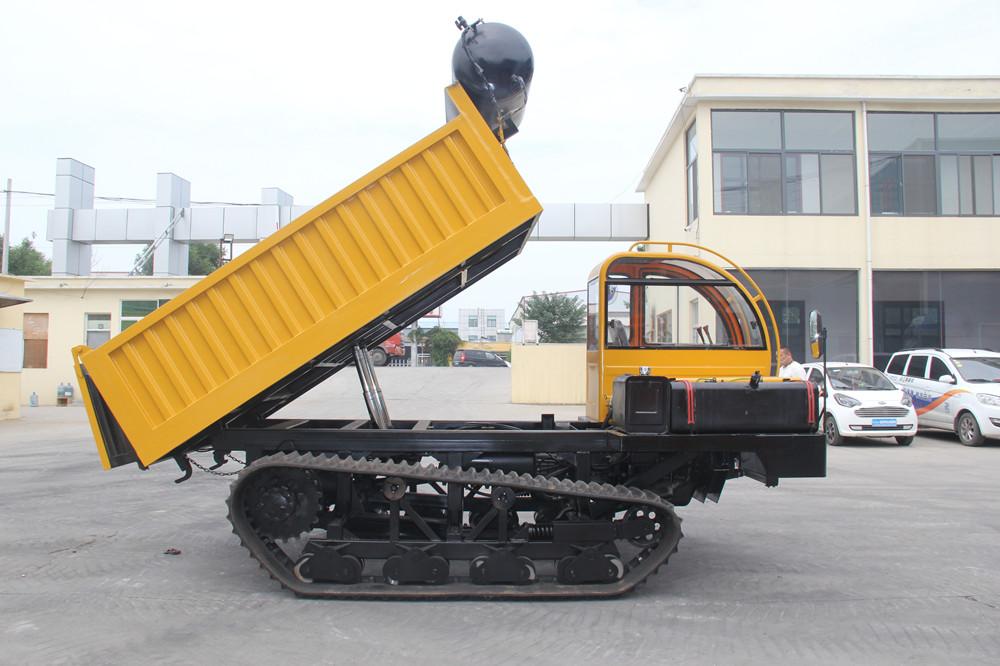

Palm Oil Dumper 6 Ton Self Dumping Track Carrier Dumper
Product Description
Advantages
(1)It can adapt to a wider range of different road conditions.(2)The mini Crawler Dumper is a special hopper that can be tilted over a short-haul conveying material.
(3)It is suitable for short-haul transportation of various bulk materials such as gravel, earthwork, coal, ore, etc.
Model | CNC-60S |
Dimensions（mm） | 4250*1850*1750 |
Car size（mm） | 2500*1850*700 |
Engine brand | Weichai 4102 Turbo |
Engine power（kw） | 65 |
Braking method | Rear brake brake |
Rated load(t） | 6 |
Vehicle weight（kg） | 3800 |
Driving Speed(km/h) | 0-35 |
Hydraulic cylinder model | Double top self-unloading 110*900 |

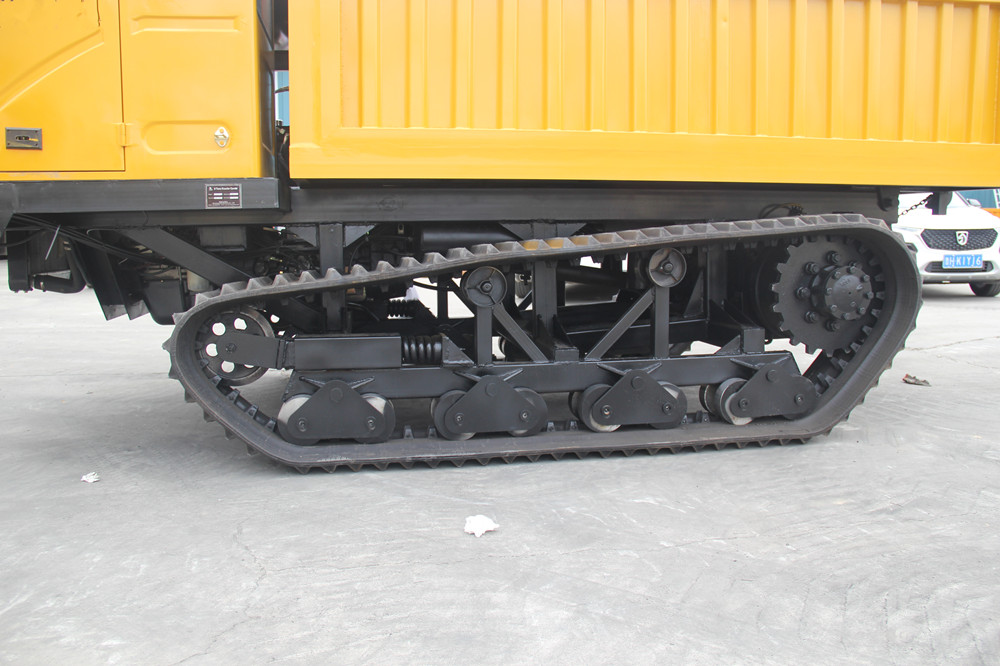

Track specification(mm) | 400*90*70 |
Gearbox material model | Dongfeng 145 |
Start method | Electric start |
Gear | 5 forward gears, 1 reverse gear |
Minimum ground clearance | 300mm |
Drive way | Air brake rear axle brake |
Main Features
(1) Wide range of use, simple structure, stable Transmission, low effort, easy to achieve automatic control
(3)Small turning radius, flexible and flexible, especially suitable for narrow terrain, complex terrain
(4) Equipped with electric start, centralized handle, easy to operate.
(2)Adopting domestic famous factory single-cylinder power system, high power, low fuel consumption,easy operation and maintenance
(3)Small turning radius, flexible and flexible, especially suitable for narrow terrain, complex terrain
(4) Equipped with electric start, centralized handle, easy to operate.
Product Categories : 2---Earthmoving Machine > Crawler Dumper
